Filter Press Cloth
PP & PE Filter Fabric • Plate & Frame • Membrane Press Cloth

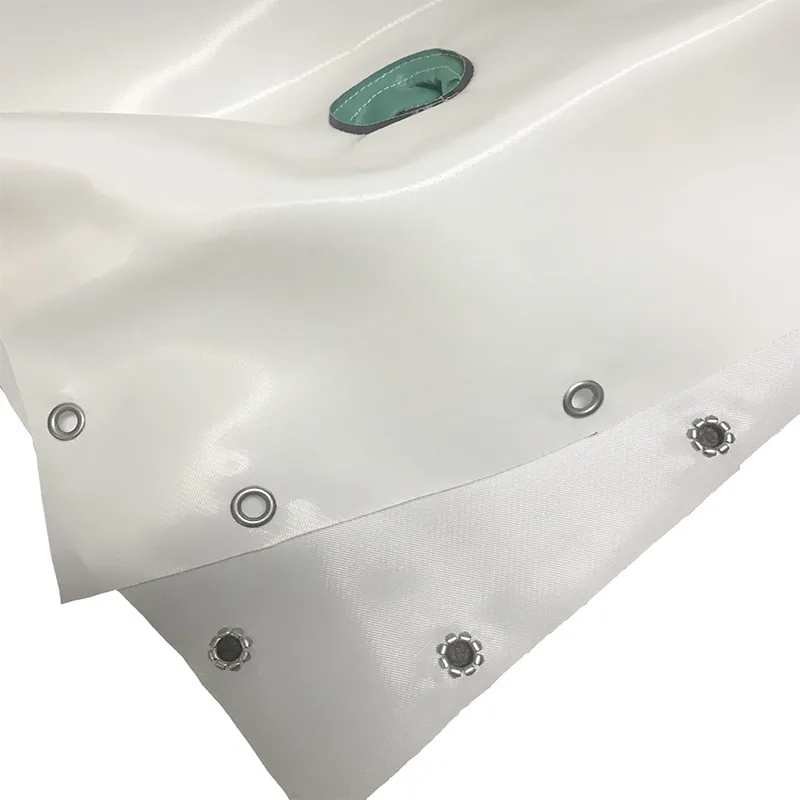

Premium filter press cloth from ECOGRACE for industrial solid-liquid separation. Custom-manufactured polypropylene and polyester filter press fabric for plate & frame, recessed chamber, and membrane filter presses. Direct OEM replacement for Jingjin, Andritz, Diefenbach, Outotec, and all major press brands with superior cake release and extended service life.
Custom Size & Weave
PP / PE / Nylon
ISO 9001 Certified
Filter Press Cloth Products
Complete range of filter press cloth for all types of industrial filter presses. ECOGRACE manufactures precision-cut filter fabric with reinforced feed holes, sealed edges, and custom neck designs to perfectly fit your press plates.
Applications by Industry
Our filter press cloth serves critical solid-liquid separation needs across major industries worldwide, delivering clean filtrate and dry filter cakes for efficient process operations.
Mining & Mineral Processing
Tailings dewatering, copper/gold/iron concentrate filtration, coal fines recovery. Heavy-duty cloth resists abrasion from mineral slurries.
Chemical & Petrochemical
Pigment filtration, catalyst recovery, dye intermediates, and chemical sludge dewatering. Acid and alkali resistant PP fabric options available.
Municipal Wastewater
Sewage sludge dewatering at WWTP plants. Achieve compliant cake dryness for landfill disposal or incineration with optimized cloth selection.
Food & Beverage
Juice clarification, brewing filtration, sugar processing, starch extraction. Food-grade nylon and PP cloth with FDA compliance available.
Pharmaceutical
API filtration, intermediate recovery, and pharmaceutical wastewater. Ultra-clean monofilament cloth for GMP-compliant processes.
Ceramics & Pigments
Kaolin, titanium dioxide, calcium carbonate, and ceramic slurry filtration. Fine particle retention with high filtrate clarity.
Filter Press Cloth Material Selection Guide
| Material | pH Range | Max Temp | Abrasion Resistance | Best For |
|---|---|---|---|---|
| Polypropylene (PP) | 1–13 | 90°C | Good | General, Chemical, Mining |
| Polyester (PE) | 2–9 | 130°C | Excellent | Mining, High-Temp Slurry |
| Nylon (PA) | 5–9 | 120°C | Excellent | Food, Pharma, Fine Particles |
| Cotton | 2–10 | 90°C | Moderate | Traditional, Sugar, Edible Oil |
| PVDF | 1–14 | 150°C | Good | Extreme Acid/Alkali |
Compatible Filter Press Brands
ECOGRACE manufactures precise filter press cloth as direct replacement for all leading filter press brands:
Why Choose ECOGRACE Filter Press Cloth
✓ Precision-Cut to Your Press
Every cloth is cut and sewn to exact plate dimensions with correct feed hole position, grommet neck, and sealed edges. Send us your plate drawing or old cloth for perfect replication.
✓ Superior Cake Release
Calendered and heat-set surface finish ensures clean cake discharge without sticking. Reduces cycle time and improves press throughput.
✓ Extended Service Life
Reinforced edges, double-stitched seams, and premium yarn quality deliver 30–50% longer cloth life compared to standard offerings. Reduce replacement frequency and total cost.
✓ Full Material Range
PP, PE, nylon, cotton, PVDF — monofilament, multifilament, and blended options. We match the ideal fabric to your slurry chemistry, temperature, and particle size.
How to Order
Share Your Specs
Press brand, plate size, feed position, quantity, and current cloth details (or send old cloth photo).
We Recommend
Our engineers select optimal material and weave pattern based on your slurry and process conditions.
Production
Custom weaving, cutting, sewing, and quality inspection. 10–20 days lead time.
Deliver & Support
Global shipping with installation tips and ongoing technical support for cloth optimization.
Frequently Asked Questions
What is the difference between plate & frame and recessed chamber filter press cloth?
Plate & frame filter press cloth uses two separate fabric pieces per chamber, draped over frame plates with a gasket seal. Recessed chamber press cloth is a single piece per plate with a center feed hole and grommet/flap neck. Recessed chamber is more common in modern industrial presses due to higher throughput and easier automation.
What material should I choose for my filter press cloth?
Polypropylene (PP) is the most versatile choice, covering pH 1–13 and temperatures up to 90°C — suitable for 80% of applications. Choose polyester for higher temperatures (up to 130°C) or abrasive slurries. Nylon is best for food-grade and pharmaceutical applications. Contact ECOGRACE for a free material recommendation.
How long does filter press cloth last?
Typical service life ranges from 6 to 24 months depending on slurry abrasiveness, press pressure, washing frequency, and chemical exposure. Non-abrasive chemical applications may achieve 18–24 months, while aggressive mining slurries may require replacement every 3–6 months. Proper cloth washing between cycles significantly extends life.

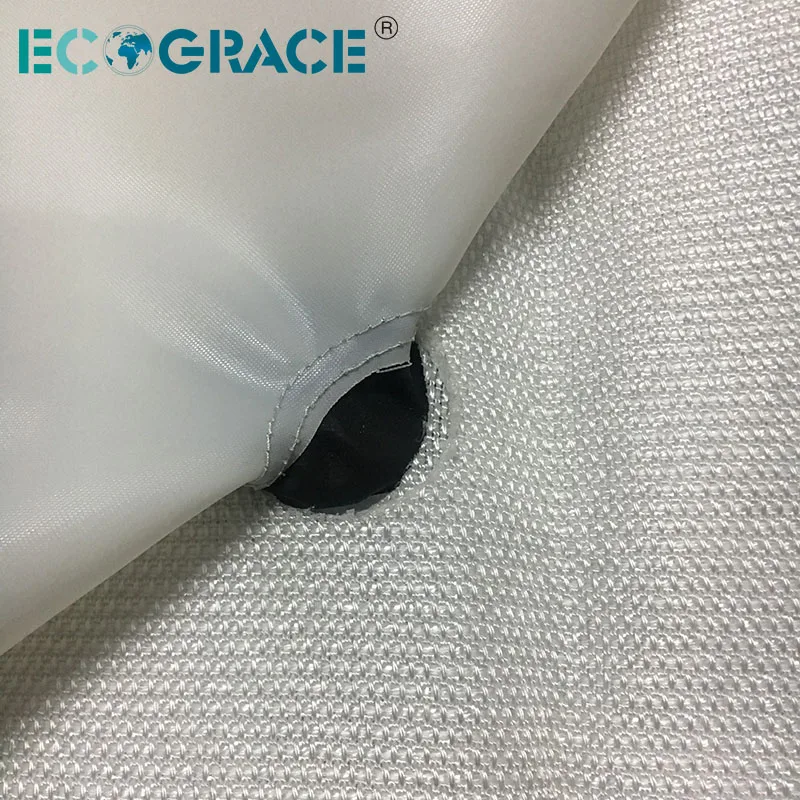

What is membrane filter press cloth and when is it needed?
Membrane filter press cloth is specifically designed for membrane squeeze plates that inflate with air or water (up to 16 bar) after initial filling. The cloth must withstand repeated stretching without fatigue or tearing. Choose membrane cloth when you need maximum cake dryness (30–45% solids) for applications like coal washing, mineral concentrate, or sludge requiring low moisture for transport.
Can you supply cloth for Jingjin filter presses?
Yes. We are a leading supplier of replacement filter press cloth for Jingjin (景津) presses including chamber plate, membrane plate, and plate & frame configurations. We stock standard Jingjin plate dimensions (630×630 to 2000×2000mm) and can produce custom sizes. Send your plate drawing or model number for exact pricing.
What is the difference between monofilament and multifilament filter cloth?
Monofilament cloth uses single-strand yarns, offering excellent cake release and easy cleaning — ideal when clean discharge is critical. Multifilament cloth uses twisted multi-strand yarns, providing finer particle retention and higher filtrate clarity — best for fine particles and clear filtrate requirements. Many applications use a combination weave.
What information do I need to provide for a quotation?
To quote accurately, we need: (1) Press brand and model, (2) Plate size (e.g., 1500×1500mm), (3) Plate type (recessed chamber / membrane / plate & frame), (4) Feed hole position (center / corner / top), (5) Neck type (grommet / flap / sewn), (6) Quantity needed, and (7) Slurry description. Photos of old cloth or plate drawings are also helpful.
Need Custom Filter Press Cloth?
Send us your press model, plate dimensions, and slurry details. Our engineers will recommend the perfect cloth and deliver a competitive quotation within 24 hours.
