Vane Type Mist Eliminator
Chevron Mist Eliminator • Vane Pack Separator • Baffle Plate Demister
ECOGRACE vane type mist eliminators deliver 95–99% mist removal at gas velocities up to 12 m/s — 3× higher throughput than wire mesh demisters. Also known as chevron mist eliminators, baffle type mist eliminators, or vane pack separators, these rugged inertial separators are purpose-built for fouling service, high liquid loading, slug flow, and dirty gas applications in FGD scrubbers, knockout drums, and oil & gas separators.
Fouling Resistant
SS / PP / FRP / Alloy
Vane Type Mist Eliminator Product Range

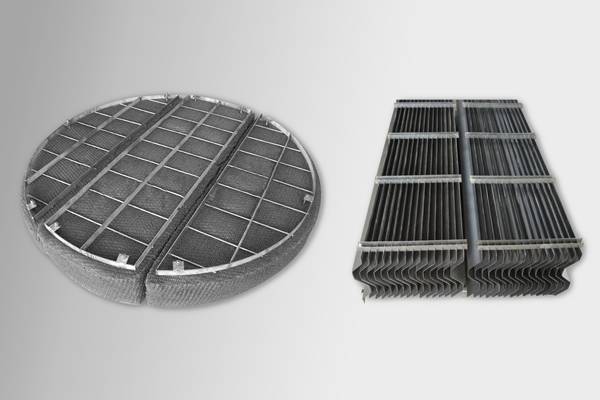

ECOGRACE manufactures three configurations of vane type mist eliminators to match your separation duty, fouling tendency, and space constraints.
How Does a Vane Type Mist Eliminator Work?
Vane type mist eliminators use inertial impaction and centrifugal force to separate liquid droplets from gas streams. As gas is forced through a series of corrugated chevron baffles, entrained droplets cannot follow the sharp directional changes and impact onto the vane blade surfaces.
Gas Entry
Mist-laden gas enters the vane mist eliminator at velocities of 3–12 m/s. The parallel corrugated vane blades create narrow channels that force the gas into a sinusoidal flow path.
Inertial Separation
At each change of direction, liquid droplets with higher inertia cannot follow the gas streamlines. They impact onto the vane blade surfaces while the lighter gas navigates around the baffles. Multiple direction changes maximize capture probability.
Drainage Pockets
Captured liquid flows into specially shaped drainage pockets (hooks) stamped into the vane blades. These pockets shield the collected liquid film from re-entrainment by the high-velocity gas stream — a critical advantage of the vane type separator.
Clean Gas Out
Separated liquid drains by gravity from the drainage pockets to the vessel sump. Clean, dry gas exits the vane mist eliminator with <0.1% liquid carryover, protecting downstream equipment from corrosion and fouling.
Vane Type vs Wire Mesh vs Fiber Bed Mist Eliminator
The vane type mist eliminator excels where wire mesh and fiber bed alternatives fall short: high gas velocity, fouling service, slug flow, and dirty gas applications. Choose the right mist eliminator based on your process conditions.
| Parameter | Vane Type Separator | Wire Mesh Demister | Fiber Bed Eliminator |
|---|---|---|---|
| Min. Droplet Size | 20 μm | 10 μm | 0.3 μm |
| Removal Efficiency | 95–99% | 98–99.5% | ≥99.9% |
| Gas Velocity | 3–12 m/s | 1–5 m/s | 0.05–0.25 m/s |
| Pressure Drop | 0.15–0.50 kPa | 0.10–0.25 kPa | 0.50–2.50 kPa |
| Fouling Tolerance | High — best choice | Low – Medium | Low |
| Liquid Loading | High — handles slug flow | Low – Medium | Low |
| Relative Cost | $$ | $ (Lowest) | $$$ |
| Best For | Fouling, dirty gas, high velocity, FGD, oil & gas | General demisting, distillation | Sub-micron acid mist, oil mist |
Vane Type Mist Eliminator Industry Applications
ECOGRACE vane type mist eliminators are the preferred choice where fouling, high gas velocity, or heavy liquid loading makes wire mesh demisters impractical. Installed across power, petrochemical, chemical, and environmental industries worldwide.
FGD Scrubbers
The #1 application for vane type mist eliminators. Remove slurry droplets from wet flue gas desulfurization (WFGD) scrubber outlets. PP and FRP construction resists corrosion and scaling in aggressive flue gas environments.
FGD Mist Eliminator
Oil & Gas Separators
Knockout drum mist eliminators, production separators, and gas processing vane pack separators. Handle slug flow, high liquid loading, and entrained hydrocarbon droplets in upstream and midstream operations.
Oil & Gas Vane Separator
Steam Drums & Boilers
Chevron separators in steam drums remove entrained boiler water from saturated steam. SS316L vane packs ensure dry steam quality for turbines and process heat exchangers.
Steam Drum Separator
Compressor Suction
Protect compressor impellers from liquid damage. Vane mist eliminators installed in suction scrubbers handle high gas throughput with minimal pressure drop and resist fouling from pipeline debris.
Compressor Inlet Separator
Cooling Towers
Drift eliminators in cooling towers prevent water carryover and Legionella risk. PP chevron mist eliminators reduce drift loss to <0.001% of circulating water flow.
Cooling Tower Drift Eliminator
Chemical & Acid Plants
Acid concentrator vents, reactor overhead scrubbers, and chemical vapor recovery. Alloy 20, Hastelloy, and PTFE-lined vane separators for severe corrosion and chemical fume control.
Chemical Plant Vane Separator
Gas Turbine Inlet
Multi-stage vane type mist eliminators in gas turbine inlet filtration systems. Remove rain, fog, and salt spray to prevent compressor blade erosion and fouling in offshore and coastal power plants.
Gas Turbine Inlet Separator
Desalination Plants
MSF and MED evaporator droplet separators. Titanium and duplex SS vane type demisters control brine carryover in high-temperature seawater service to ensure distillate product quality.
Desalination Vane Demister
Vane Type Mist Eliminator Technical Specifications
Standard specifications for ECOGRACE vane type mist eliminators by configuration. All units manufactured with precision-formed vane blades and welded structural frames.

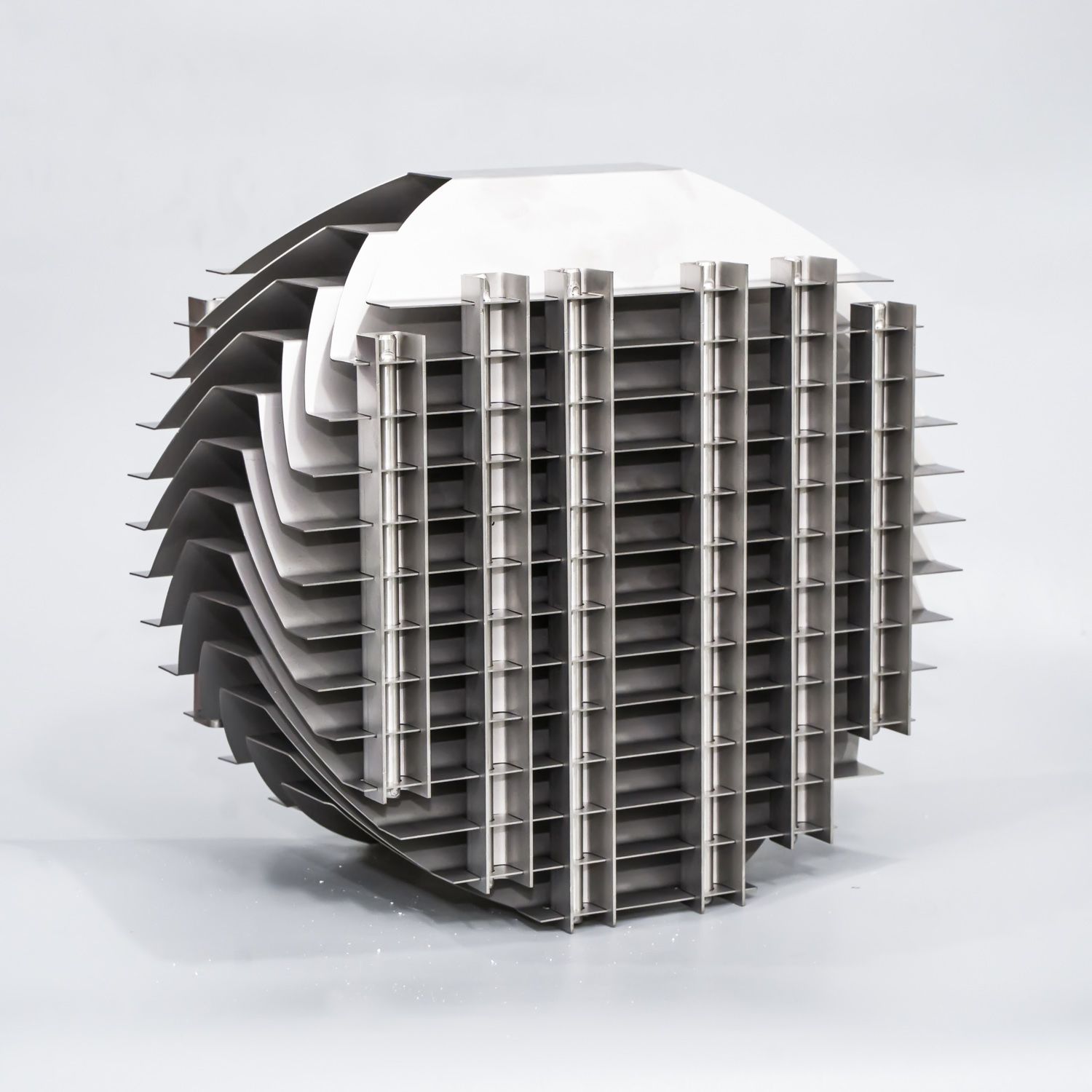

| Parameter | Single-Pocket | Double-Pocket | Multi-Stage |
|---|---|---|---|
| Min. Droplet Size (μm) | 20 | 15 | 10 |
| Removal Efficiency | 95–98% | 97–99% | 98–99.5% |
| Design Gas Velocity (m/s) | 3–10 | 3–12 | 3–10 |
| Pressure Drop (kPa) | 0.15–0.40 | 0.25–0.50 | 0.30–0.75 |
| Blade Spacing (mm) | 20–35 | 20–30 | 15–25 |
| Blade Thickness (mm) | 0.5–2.0 (metal); 2.0–4.0 (PP / FRP) | ||
| Pack Depth (mm) | 150–200 | 200–300 | 300–600 |
| Gas Flow Direction | Horizontal or vertical — custom orientation to suit vessel geometry | ||
| Temperature Range | −196°C to 540°C (metal); −30°C to 120°C (PP / FRP) | ||
| Max Operating Pressure | Up to 200 bar (metal); 6 bar (PP / FRP) | ||
Vane Mist Eliminator Material Selection Guide
ECOGRACE offers vane type mist eliminators in a full range of metallic and polymer materials for any corrosive or high-temperature environment.
| Material | Max Temp | Corrosion Resistance | Typical Applications |
|---|---|---|---|
| SS304 / 304L | 540°C | Good – general purpose | Knockout drums, steam drums, general chemical |
| SS316 / 316L | 540°C | Superior – chloride, marine | Offshore platforms, petrochemical, pharmaceutical |
| Duplex 2205 | 315°C | Excellent – chloride, high strength | Subsea separators, high-pressure vessels, desalination |
| Alloy 20 / Hastelloy | 540°C | Outstanding – acids, mixed environments | Sulfuric acid service, severe corrosion |
| Titanium Gr.2 | 315°C | Excellent – seawater, chloride | Desalination, chlor-alkali, brine systems |
| PP (Polypropylene) | 120°C | Good – acid, alkali, low cost | FGD scrubbers, cooling towers, wet gas cleaning |
| FRP (Fiberglass) | 150°C | Good – acid, alkali, high strength | Large FGD ducts, chemical scrubbers, wide-span assemblies |
Why Choose ECOGRACE Vane Type Mist Eliminators
As an experienced vane mist eliminator manufacturer and mist eliminator supplier, ECOGRACE delivers engineered separation solutions with competitive pricing and fast turnaround for projects worldwide.
Direct Factory Pricing
Buy direct from our production facility — no distributors, no middlemen. Competitive vane type mist eliminator pricing with 30–50% savings versus Western OEM brands for equivalent quality.
Custom Engineering
Our engineers design vane pack separators to match your exact vessel geometry, gas conditions, and efficiency targets. CFD-validated blade profiles, drainage pocket optimization, and pressure drop analysis for every project.
Fast Global Delivery
Standard chevron mist eliminators ship within 10–20 business days. Special alloy and large-format assemblies available with short lead times. Export-grade packaging for safe ocean freight to any port worldwide.
Proven Quality
ISO 9001 certified. Material test certificates (MTC 3.1), dimensional inspection reports, and blade profile verification provided with every shipment of vane mist eliminators. Installed in 40+ countries across power, oil & gas, and chemical sectors.
Vane Type Mist Eliminator FAQ
Common questions about vane type mist eliminators, selection criteria, installation, and performance.
What is a vane type mist eliminator?
A vane type mist eliminator (also called a chevron mist eliminator, baffle type mist eliminator, vane pack separator, or plate type mist eliminator) is a gas-liquid separator consisting of a series of corrugated metal or polymer blades arranged in parallel. Gas is forced through the channels between blades, and entrained liquid droplets are captured by inertial impaction as they cannot follow the sharp directional changes.
When should I use a vane type mist eliminator instead of wire mesh?
Choose a vane type mist eliminator over a wire mesh demister when: (1) gas velocity exceeds 5 m/s, (2) the process has fouling or scaling tendency, (3) liquid loading is high or slug flow is expected, (4) the gas contains solids or sticky particles that would plug wire mesh, or (5) the service requires frequent washdown. Vane types handle 2–3× higher gas throughput per unit area.
What is the difference between single-pocket and double-pocket vane blades?

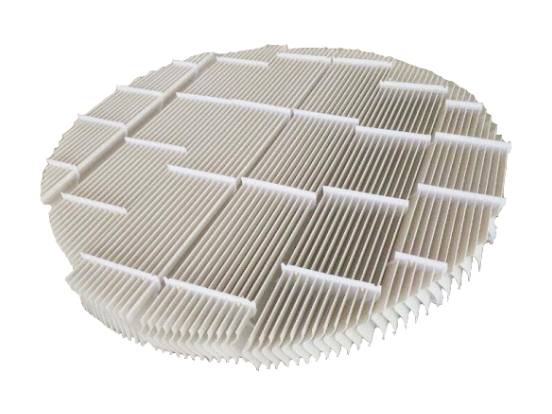

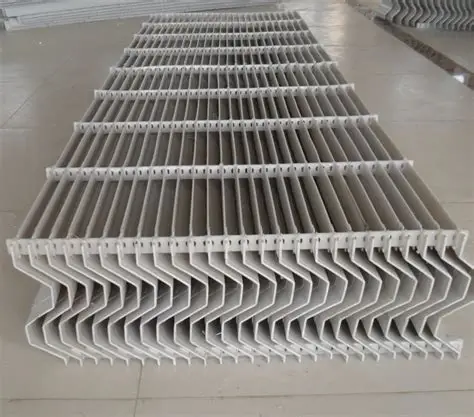

Single-pocket vane blades have one drainage channel per bend, suitable for moderate liquid loading at gas velocities up to 10 m/s. Double-pocket blades feature two drainage hooks per bend, providing superior anti-re-entrainment performance at higher velocities (up to 12 m/s) and heavy liquid loading. Double-pocket designs are preferred for knockout drum and oil & gas separator applications.
Can vane mist eliminators be installed horizontally?
Yes. Vane type mist eliminators can be installed for both vertical (upward) and horizontal gas flow. Horizontal installation is common in oil and gas separators, compressor suction scrubbers, and FGD ductwork where space constraints prevent vertical arrangement. The vane blades are oriented so liquid drains downward perpendicular to the gas flow direction.
What materials are used for FGD vane mist eliminators?
FGD mist eliminators are typically manufactured from PP (polypropylene) or FRP (fiberglass reinforced plastic) due to the corrosive flue gas environment containing SO2, HCl, and HF. PP is most common for temperatures below 100°C. FRP is used for higher temperature service and larger structural spans. Metal vane packs (SS316L, alloy) are used in special high-temperature FGD applications.
What sizes of vane mist eliminators does ECOGRACE supply?
ECOGRACE manufactures vane type mist eliminators from 200 mm to 15,000 mm+ in any dimension. Small units are supplied as pre-assembled panels. Large FGD mist eliminators are supplied as modular sections for field assembly. Custom shapes including circular, rectangular, annular, and duct-fit configurations are available for any vessel or ductwork geometry.
Request a Vane Type Mist Eliminator Quotation
Send us your vessel drawing, gas conditions, and material requirements. Our engineers will provide a complete vane mist eliminator design and competitive quotation within 24 hours.
