ECOGRACE
Industrial Mist Eliminators
Wire Mesh Demisters • Vane Pack Separators • Candle Fiber Bed Filters
Complete mist elimination solutions for acid mist, chemical aerosol, oil mist, and liquid droplet removal in oil & gas, chemical, power, and environmental applications. Engineered and manufactured by ECOGRACE.
Mist Eliminator Product Range
ECOGRACE manufactures a full range of mist elimination technologies to match every separation requirement — from bulk liquid knockout to sub-micron aerosol polishing.
Mist Eliminator Technology Comparison
Choosing the right mist eliminator depends on droplet size, gas velocity, chemical environment, and target emission level. Use the comparison below to identify the optimal technology for your application.
| Parameter | Wire Mesh Demister | Vane Type Eliminator | Candle / Fiber Bed |
|---|---|---|---|
| Min. Droplet Size Removed | >10 µm | >5 µm | >0.1 µm |
| Removal Efficiency | 95 – 99% | 95 – 99% | ≥99.9% |
| Typical Gas Velocity | 1 – 5 m/s | 4 – 10 m/s | 0.05 – 0.25 m/s |
| Pressure Drop | 25 – 250 Pa | 100 – 500 Pa | 150 – 1,500 Pa |
| Best For | General liquid knockout | High velocity / high liquid load | Sub-micron acid mist & aerosol |
| Typical Applications | Distillation, evaporator, scrubber | KO drum, compressor inlet, desalination | H₂SO₄, HCl, CrO₃, refinery, FGD |
| Material Options | SS 304/316L, Monel, PP, PTFE | SS 316L, Duplex, Hastelloy, PP | Glass fiber, PP, PTFE, PVDF |
| Service Life | 3 – 10 years | 5 – 15 years | 3 – 8 years |
| Relative Cost | $ | $$ | $$$ |
Mist Eliminator Applications by Industry
ECOGRACE mist eliminators serve diverse industries worldwide. Select your industry to find the recommended mist elimination solution.
Oil & Gas / Refining
Compressor inlet separators, glycol dehydration, amine treating, alkylation units, sulfur recovery (SRU), flare KO drums.
Recommended: Vane Pack + Candle
Sulfuric Acid Plants
Absorption tower acid mist, drying tower mist, oleum production off-gas. EPA NSPS & EU BAT compliance.
Recommended: Candle Fiber Bed
Chemical Processing
Reactor off-gas, distillation overheads, evaporator entrainment, acid recovery systems, solvent stripping columns.
Recommended: Wire Mesh + Candle
Power Generation
Wet FGD scrubber mist elimination, SO₃ polishing, cooling tower drift elimination, steam drum demisters.
Recommended: Wire Mesh + Vane
Chlor-Alkali Industry
Chlorine gas drying, HCl absorption off-gas, caustic soda evaporator mist, brine processing.
Recommended: Candle (PVDF/PTFE)
Desalination
MSF and MED evaporator demisters, brine droplet control, product water quality protection.
Recommended: Vane Pack + Wire Mesh
Chrome Plating
Hexavalent chromium (Cr VI) acid mist control for hard chrome and decorative chrome. EPA NESHAP MACT compliance.
Recommended: Candle (PP fiber)
Fertilizer & Phosphoric Acid
Phosphoric acid evaporator mist, nitric acid tail gas, ammonium nitrate prilling tower, urea granulation.
Recommended: Candle (Glass/PTFE)
Why Choose ECOGRACE Mist Eliminators
Over 15 years of industrial filtration experience. 3,000+ installations across 60 countries. One source for all mist elimination needs.
Full Product Range
Wire mesh demisters, vane packs, and candle fiber bed filters — all from one manufacturer. No need to source from multiple suppliers. Single point of engineering responsibility for your complete mist elimination system.
Application Engineering
We don’t just sell products — we engineer solutions. Provide your process data (gas flow, temperature, composition, target emission) and our engineers will select the optimal mist elimination technology, materials, and configuration for your specific operating conditions.
Factory-Direct Pricing
As a direct manufacturer with in-house production capabilities for all three mist eliminator types, ECOGRACE delivers 40–60% cost savings compared to European and North American OEM pricing — with equivalent materials, performance specifications, and quality standards.
OEM Replacement Compatible
Drop-in replacement mist eliminator elements for all major OEM vessels including CECO/Fisher-Klosterman, Kimre, Koch-Otto York, Begg Cousland, and Munters. Send your existing element drawings or dimensions for exact-fit replacements.
How to Select the Right Mist Eliminator
Follow this simple decision guide to determine which mist eliminator technology is right for your application. For complex or multi-stage requirements, contact ECOGRACE for a detailed engineering recommendation.
Step 1: Identify Droplet Size
Droplets >10 µm → Wire Mesh Demister Pad
Droplets 5–20 µm + high velocity → Vane Pack
Aerosol <3 µm (acid mist, fume) → Candle / Fiber Bed
Step 2: Check Gas Velocity
Low velocity (<5 m/s) → Wire Mesh Demister ideal
High velocity (5–10 m/s) → Vane Pack required
Very low velocity (0.05–0.25 m/s) → Candle element design velocity
Step 3: Define Chemical Environment
Non-corrosive / mild → SS 304/316L wire mesh or vane
Acid (H₂SO₄, HCl, HNO₃) → PP/PTFE mesh or Candle
Severe acid / HF / oleum → PTFE Candle fiber bed
Step 4: Set Emission Target
General entrainment control → Wire Mesh or Vane sufficient
<50 mg/Nm³ → High-efficiency wire mesh or vane
<5 mg/Nm³ (regulatory compliance) → Candle Fiber Bed required
Product Quick Reference
Standard sizes and materials available from stock. Custom designs engineered to order.

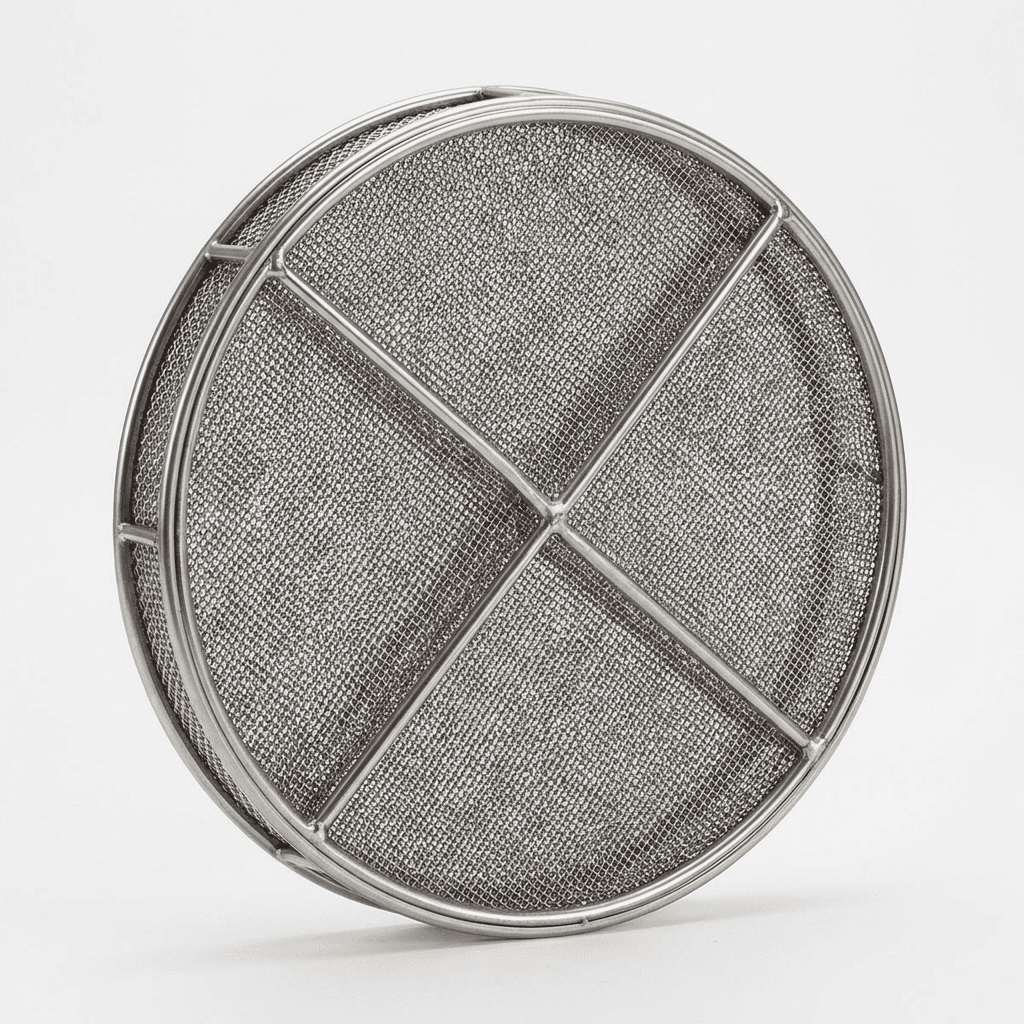

Wire Mesh Demister Pad Sizes
| Diameter | 100 mm – 6,000 mm |
| Thickness | 100 mm, 150 mm, 200 mm, 300 mm |
| Wire Diameter | 0.10 – 0.30 mm |
| Density | 80 – 320 kg/m³ |
| Materials | SS 304, 316L, Monel, PP, PTFE |

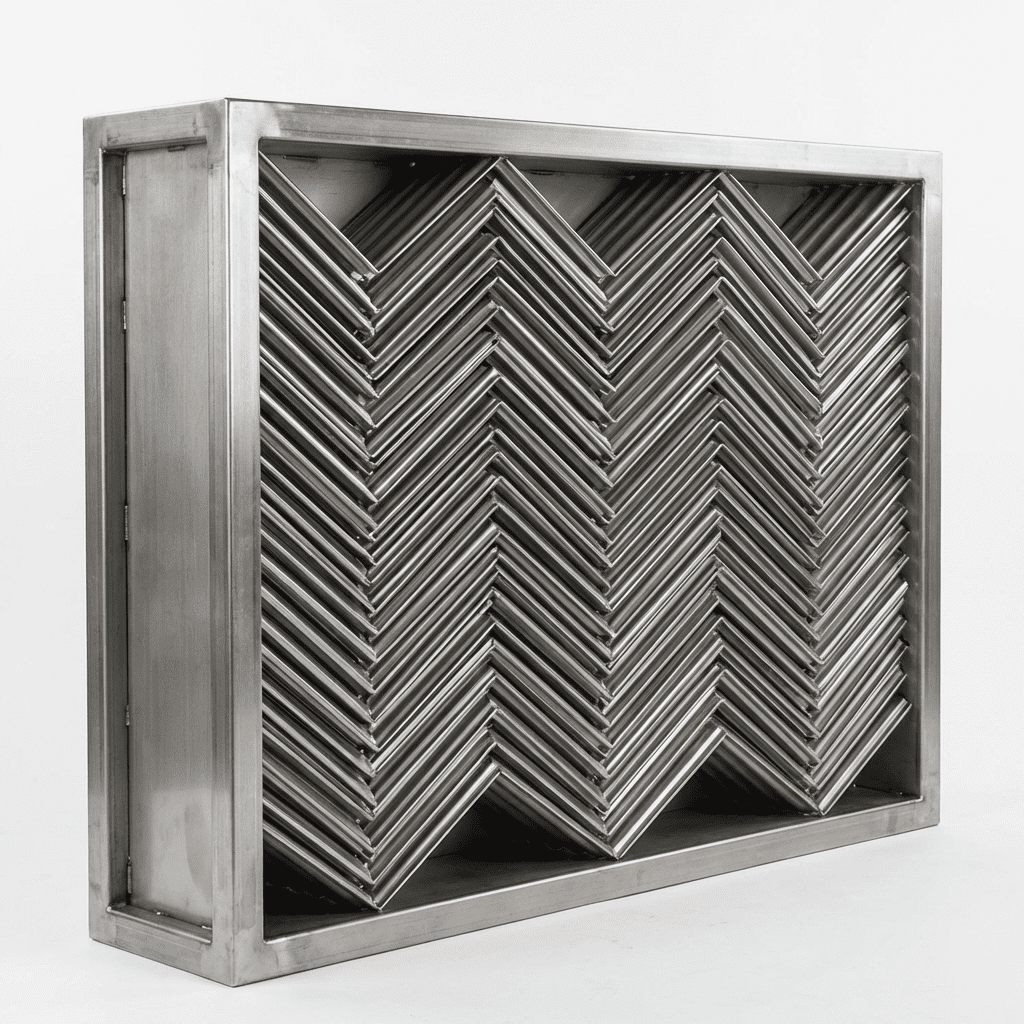

Vane Pack Standard Configurations
| Blade Spacing | 15 mm, 20 mm, 25 mm |
| Number of Bends | 3, 4, 6 bends |
| Blade Thickness | 0.5 – 1.5 mm |
| Configuration | Horizontal or vertical flow |
| Materials | SS 316L, Duplex, Hastelloy, PP |
Candle Mist Eliminator Elements
| Element Diameter | 60, 80, 100, 120, 150 mm |
| Element Length | 500 – 3,000 mm |
| Fiber Bed Thickness | 25 – 75 mm |
| Fiber Media | Glass, PP, PTFE, PVDF |
| Core / Shell | SS 316L, PP, FRP |
Frequently Asked Questions
What is a mist eliminator and why do I need one?
A mist eliminator (also called demister or entrainment separator) is a device installed in process vessels, towers, and ducts to remove liquid droplets and aerosols from gas streams. Mist eliminators prevent product loss, protect downstream equipment (compressors, catalysts, heat exchangers), ensure environmental compliance, and improve product purity. Without effective mist elimination, entrained liquid can cause corrosion, fouling, catalyst poisoning, and regulatory violations.
Which type of mist eliminator should I choose?
For general liquid droplet removal at moderate gas velocities, a wire mesh demister pad provides the best cost-performance balance. For high gas velocity or high liquid loading applications, a vane type mist eliminator is required to prevent flooding. For sub-micron acid mist, chemical aerosol, or fine oil fog where emission limits are stringent (<5 mg/Nm³), a candle mist eliminator (fiber bed) is the only effective technology. Many installations use a combination — e.g., wire mesh for primary separation followed by candle elements for sub-micron polishing.
Can you supply replacement elements for existing OEM mist eliminator vessels?
Yes. ECOGRACE manufactures drop-in replacement mist eliminator elements (wire mesh pads, vane packs, and candle filter elements) compatible with all major OEM vessel designs. Send us your existing element dimensions, drawings, or part numbers for exact-fit replacements at factory-direct pricing.
What information do you need to provide a quotation?
For accurate sizing and quotation, please provide: (1) gas flow rate (Nm³/h or ACFM), (2) gas composition and liquid type, (3) operating temperature and pressure, (4) inlet mist/droplet loading (mg/Nm³), (5) target outlet emission or purity requirement, (6) vessel diameter or available space, and (7) any existing drawings or part numbers for replacement orders. Our engineers will recommend the optimal solution within 24 hours.
Need Help Selecting a Mist Eliminator?
Contact ECOGRACE engineers for application-specific mist elimination solutions — from single demister pads to complete turnkey vessel systems.
