Sulfuric Acid Plant Mist Elimination Challenges
The contact sulfuric acid process generates extremely fine sulfuric acid mist (H2SO4 aerosol) in absorber and drying tower exhaust gases. These sub-micron acid droplets — typically 0.1–3 μm in diameter — are formed when SO3 reacts with moisture faster than it can be absorbed by the acid film. Conventional wire mesh demisters and vane separators cannot capture particles below 10 μm, making fiber bed mist eliminators the only proven technology for sub-micron acid mist removal in sulfuric acid manufacturing.
Without effective sulfuric acid mist elimination, plants face EPA non-compliance, corrosive acid plume damage to surrounding infrastructure, visible stack emissions, and loss of valuable product. ECOGRACE supplies complete acid mist eliminator systems including fiber bed mist eliminators (candle filters) for sub-micron polishing, vane type mist eliminators for bulk entrainment, and wire mesh demister pads for intermediate separation.
Sulfuric Acid Plant Applications
Absorber Tower Exit — Primary Acid Mist
The most critical mist elimination point in any sulfuric acid plant. SO3 gas not absorbed in the acid film condenses as sub-micron H2SO4 aerosol (0.1–3 μm). Fiber bed mist eliminators achieve ≥99.9% removal of these acid droplets via Brownian diffusion capture, reducing stack emissions to <10 mg/Nm³.
Recommended: Candle Mist Eliminator (Glass fiber / PTFE)
Drying Tower Outlet — Moisture & Acid Mist
Concentrated sulfuric acid drying towers remove moisture from incoming gas. Entrained acid droplets (>10 μm) and fine acid mist from incomplete drying must be captured before the converter. Wire mesh or vane type mist eliminators handle bulk droplets; fiber beds polish the remaining sub-micron aerosol.
Recommended: Wire Mesh Demister (Alloy 20) + Candle Filter
Oleum Plant — SO3 & Fuming Sulfuric Acid
Oleum (fuming sulfuric acid) production generates dense SO3 fume and concentrated acid mist at very high acid strength (>100% H2SO4). PTFE fiber mist eliminators with chemical-resistant housings are required for these extreme corrosion environments. Alloy 20 or Hastelloy support structures are standard.
Recommended: Candle Mist Eliminator (PTFE / Glass fiber)
Spent Acid Regeneration (SAR)
Spent acid regeneration plants in petroleum refineries and chemical facilities decompose waste sulfuric acid and regenerate fresh H2SO4. The absorber exit gas contains acid mist laden with impurities. Multi-stage acid mist eliminators with pre-filters remove both particulate and sub-micron acid aerosol.
Recommended: Fiber Bed Eliminator (Glass fiber with pre-filter)
Metallurgical Acid Plants (Smelter Gas)
Sulfuric acid produced from smelter off-gas (copper, zinc, lead smelters) contains higher impurity levels and variable SO2 concentrations. Acid mist filters must handle wider operating ranges and resist contamination from metallic particulates. ECOGRACE supplies ruggedized fiber mist eliminators with enhanced drainage for metallurgical acid plants.
Recommended: Candle Mist Eliminator (Glass fiber, heavy-duty)
Inter-Pass Absorption (Double Absorption)
Modern double-absorption (DCDA) sulfuric acid plants use an inter-pass absorber to achieve >99.7% SO2 conversion. The inter-pass absorber exit requires mist elimination to prevent acid carryover to the second converter pass. Wire mesh demisters in Alloy 20 handle this intermediate duty.
Recommended: Wire Mesh Demister (Alloy 20 / SS316L)
Multi-Stage Acid Mist Elimination System
For maximum emission control in sulfuric acid plants, ECOGRACE recommends a multi-stage acid mist eliminator approach at the absorber tower outlet:
Result
Clean Stack
Emission <10 mg/Nm³
<0.5 kg/ton H2SO4
Sulfuric Acid Mist Eliminator Technical Comparison
Selecting the right acid mist eliminator for each location in the sulfuric acid process depends on droplet size, acid concentration, temperature, and emission target.
| Parameter | Fiber Bed Candle | Wire Mesh Demister | Vane Type Separator |
|---|---|---|---|
| Min. Particle Size | 0.3 μm | 10 μm | 20 μm |
| H2SO4 Mist Removal | ≥99.9% | 90–95% | 70–85% |
| Stack Emission | <10 mg/Nm³ | 50–150 mg/Nm³ | 100–300 mg/Nm³ |
| Capture Mechanism | Brownian diffusion | Inertial impaction | Inertial + centrifugal |
| Acid Concentration | 93–115% (incl. oleum) | 93–98% | 93–98% |
| Typical Materials | Glass fiber, PTFE | Alloy 20, Hastelloy | Alloy 20, SS316L |
| Best Position | Final absorber exit | Drying tower, inter-pass | Pre-filter / bulk removal |
Why Fiber Bed Mist Eliminators for Sulfuric Acid
Sub-Micron Capture
Unlike wire mesh or vane types, fiber bed mist eliminators capture acid droplets down to 0.3 μm via Brownian diffusion. This is the only technology capable of achieving EPA-compliant stack emissions from sulfuric acid plants.
Acid Product Recovery
Captured acid mist drains back as concentrated H2SO4, recovering valuable product that would otherwise be lost to the atmosphere. A typical 2,000 TPD acid plant recovers 1–3 tons/day of acid through mist elimination.
Corrosion-Resistant Materials
ECOGRACE sulfuric acid mist eliminators use borosilicate glass fiber or PTFE fiber beds with Alloy 20, Hastelloy C-276, or PTFE-lined housings. Engineered to resist concentrated H2SO4 at temperatures up to 260°C.
EPA & Environmental Compliance
Meet the strictest global emission limits: EPA NSPS (<0.5 kg/ton), EU BAT (<35 mg/Nm³), and local regulations. ECOGRACE acid mist filters typically achieve <10 mg/Nm³ stack emissions — well below regulatory limits.
Recommended Products for Sulfuric Acid Plants

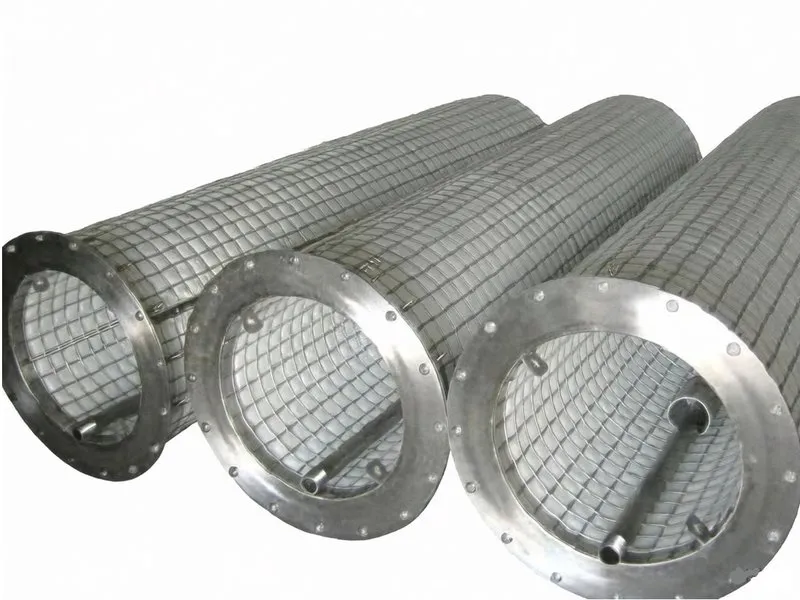

Fiber Bed Mist Eliminator
Primary sulfuric acid mist eliminator. Glass fiber & PTFE candle elements for sub-micron acid aerosol removal. ≥99.9% efficiency.
Wire Mesh Demister Pad
Drying tower & inter-pass absorber demister. Alloy 20 wire mesh for concentrated H2SO4 service.
Vane Type Mist Eliminator
Bulk entrainment pre-separator for high liquid loading. Alloy 20 or SS316L construction.
Sulfuric Acid Mist Eliminator FAQ
Why can’t wire mesh demisters remove sulfuric acid mist effectively?
Sulfuric acid mist droplets from absorber towers are predominantly sub-micron (0.1–3 μm). Wire mesh demisters work by inertial impaction, which is only effective for droplets ≥10 μm. Sub-micron particles have insufficient inertia to deviate from gas streamlines and simply pass through the mesh. Only fiber bed mist eliminators using Brownian diffusion can capture these fine acid aerosols.
What emission level can a fiber bed acid mist eliminator achieve?
ECOGRACE fiber bed mist eliminators for sulfuric acid plants consistently achieve stack emissions of <10 mg/Nm³ (as H2SO4), equivalent to <0.25 kg acid per ton of H2SO4 produced. This is well below EPA NSPS limits of 0.5 kg/ton and EU BAT limits of 35 mg/Nm³.
What is the service life of acid mist eliminator candles?
Glass fiber candle elements in sulfuric acid service typically last 3–5 years with proper operation. PTFE fiber elements can last 5–7+ years. Service life depends on acid strength, gas temperature, SO3 loading, and particulate contamination. ECOGRACE supplies replacement candle elements compatible with all major sulfuric acid mist eliminator systems.
Does ECOGRACE supply retrofit acid mist eliminators?
Yes. ECOGRACE supplies retrofit acid mist eliminators and replacement candle elements compatible with existing Monsanto, Chemetics, Lurgi, Haldor Topsoe, and other OEM sulfuric acid mist elimination systems. Our engineers perform site assessment and design drop-in replacements that match existing vessel connections and tubesheet layouts.
