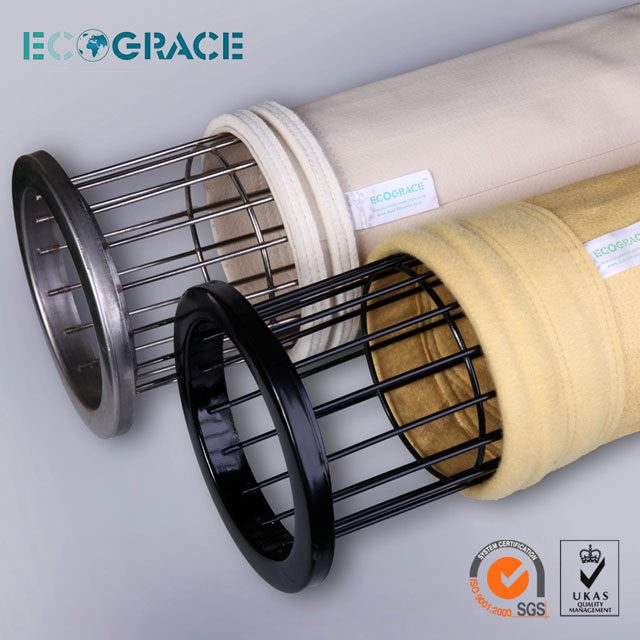

High-Temperature Filter Bags for Asphalt Plants dust filters

🔹 Technical Resource | High-Temperature Filtration Solutions for Asphalt Production

---

Why Are High-Temperature Asphalt Plant Dust Filters Critical for Emission Control?

In asphalt mixing plant operations, asphalt plant dust filters serve as the primary defense against particulate emissions from dryer drums and aggregate heating systems. At ECOGRACE, we specialize in manufacturing Nomex filter bags that withstand continuous temperatures exceeding 200°C while maintaining filtration efficiency above 99.9%.

✅ Industry Compliance: Our asphalt plant dust filters help facilities meet EPA 40 CFR Part 60 and EU Directive 2010/75/EU emission standards.

---

1. Technical Advantages of Nomex-Based Asphalt Plant Dust Filters

Standard synthetic filter media fail rapidly in asphalt baghouse environments due to thermal degradation. Our asphalt plant dust filters utilize 100% Meta-Aramid (Nomex®) fiber, providing:

• Thermal Stability: Continuous operating temperature of 204°C (400°F) with surge protection to 240°C
• Chemical Resistance: Withstands acidic SO₂ and alkaline NH₃ in flue gas streams
• Mechanical Durability: Tensile strength >1200 N/5cm ensures resistance to pulse-jet cleaning stress
• Extended Service Life: Typical lifespan of 36-60 months in properly maintained systems
• Emission Performance: Achieves particulate emission levels <10 mg/Nm³

---

2. Material Specifications for Asphalt Plant Dust Filters

When specifying asphalt plant dust filters, the following technical parameters are critical for optimal performance:

Parameter	Specification	Test Standard
Base Material	100% Meta-Aramid (Nomex®)	ASTM D276
Fabric Weight	450 – 550 g/m²	ISO 3801
Continuous Operating Temp	204°C	ISO 11057
Peak Temperature Resistance	240°C (short-term)	–
Air Permeability	12 – 18 m³/m²/min @ 200Pa	ISO 9237
Tensile Strength (Warp/Weft)	>1200 N / >1400 N per 5cm	ISO 13934-1
Surface Treatment	Singed + Calendered + Optional PTFE	–

* All specifications comply with ISO 11057:2011 standards for industrial textile filter media.

---

3. OEM Compatibility for Global Asphalt Plant Brands

Our asphalt plant dust filters are precision-engineered to fit all major baghouse systems:

We provide custom sizing based on your baghouse drawings. Common configurations include Ø130×2450mm, Ø160×3000mm, and Ø180×4000mm.

---

4. ECOGRACE Manufacturing Excellence

1. Premium Fiber Sourcing: We partner with DuPont™ and Teijin® for consistent Meta-Aramid quality.
2. ISO-Certified Production: Every filter batch undergoes multi-point testing in our accredited laboratory (ISO 9001:2015).
3. Global Logistics: Warehouses in Saudi Arabia, USA, and Southeas
