Cement Plant Filter Bags
High-Temperature Dust Collection for Cement Kiln & Grinding Systems
Engineered by ECOGRACE
Product Overview

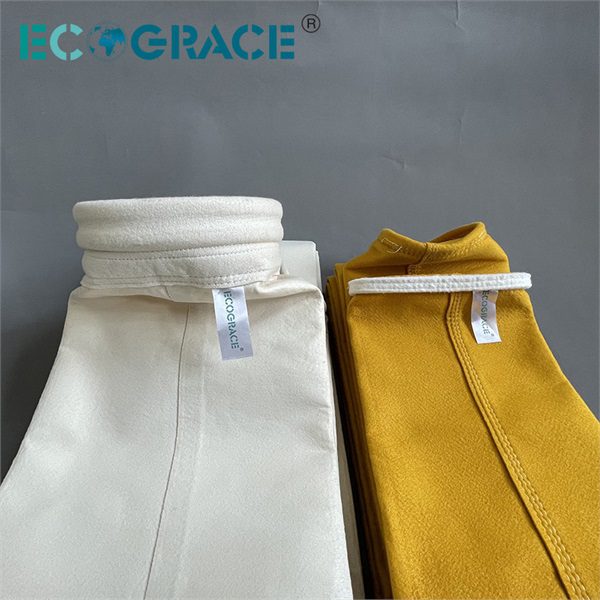

ECOGRACE cement plant filter bags are purpose-built for the harsh dust collection demands of cement manufacturing. From raw material grinding to clinker cooling, our filter bags capture fine particulates at 99.9% efficiency while withstanding continuous operating temperatures up to 260°C. Every filter bag is designed to handle the abrasive calcium carbonate,ite, andite dust typical in cement production lines.
Cement plants generate some of the highest dust loads in industrial processing — often exceeding 1,000 g/m³ at kiln inlet points. Our high temperature filter bags are engineered with reinforced base cloth and surface treatment to resist abrasion, chemical attack, and thermal degradation across every stage of cement production.
With over 15 years of experience supplying cement plants worldwide, ECOGRACE provides customized filter bag solutions that reduce emissions below 10 mg/Nm³, extend service life to 24-36 months, and minimize unplanned downtime for baghouse maintenance.
Filter Bags for Each Cement Production Stage
Raw Material Crushing & Grinding
Heavy calcium dust at 80-120°C. Requires abrasion-resistant polyester or acrylic filter media with PTFE membrane lamination for fine particle capture.
Rotary Kiln & Preheater
Extreme temperatures 200-260°C with alkali-rich dust. Fiber glass filter bags or NOMEX filter bags with acid-resistant finishing required.
Clinker Cooler
High-volume hot air at 150-200°C with fine clinker particles. Requires heat-stabilized aramid or PPS blended media with enhanced air permeability.
Cement Mill & Packing
Moderate temperatures 60-100°C with extremely fine cement powder. Polyester needle felt with anti-static treatment and oleophobic coating for optimal cake release.
Coal Mill
Explosion-risk environment at 80-150°C. Anti-static and flame-retardant filter media mandatory. NOMEX or acrylic blended bags with conductive fibers for spark prevention.
Recommended Filter Media for Cement Plants
Fiber Glass Filter Bags
Up to 280°C continuous operation. Best for kiln tail and preheater baghouses. Excellent dimensional stability and low thermal shrinkage.
NOMEX (Aramid) Filter Bags
200-260°C with superior flex resistance. Ideal for clinker cooler and coal mill applications. 30% longer lifespan than standard fiber glass in abrasive conditions.
PPS Filter Bags
160-190°C with excellent chemical resistance. Suitable for cement plants using high-sulfur fuels or co-processing waste materials.
PTFE Membrane Filter Bags
Surface filtration with near-zero emissions. Achieves <5 mg/Nm³ outlet concentration. Best for plants requiring ultra-low emission compliance.
Material Comparison for Cement Applications
| Material | Temperature | Best Application | Service Life |
|---|---|---|---|
| Fiber Glass | Up to 280°C | Kiln tail, preheater | 18-24 months |
| NOMEX (Aramid) | 200-260°C | Clinker cooler, coal mill | 24-36 months |
| PPS | 160-190°C | High-sulfur fuel systems | 24-30 months |
| PTFE Membrane | Up to 260°C | Ultra-low emission zones | 24-36 months |
| Polyester | Up to 130°C | Cement mill, packing | 18-24 months |
Technical Parameters
| Parameter | Specification |
|---|---|
| Filtration Efficiency | 99.9% at 0.3 microns |
| Outlet Emission | <10 mg/Nm³ (PTFE membrane <5 mg/Nm³) |
| Temperature Range | 130°C – 280°C (material dependent) |
| Dust Handling Capacity | Up to 1,200 g/m³ inlet concentration |
| Air-to-Cloth Ratio | 0.8-1.2 m/min (cement kiln applications) |
| Service Life | 18-36 months (application dependent) |
| Tensile Strength | ≥800N/5cm (warp) / ≥1000N/5cm (weft) |
| Air Permeability | 8-14 m³/m²/min @ 200Pa |
| Surface Treatment | Singeing, calendering, PTFE membrane optional |
| Certification | ISO 9001, ISO 14001, CE |
Why Cement Plants Need Specialized Filter Bags
Cement manufacturing is one of the most demanding environments for dust collector filter bags. The combination of extreme temperatures, highly abrasive calcium-based dust, chemical condensation from kiln gases, and continuous 24/7 operation creates conditions that destroy standard filter media within weeks.
Extreme Abrasion
Calcium carbonate andite particles act as sandpaper on filter surfaces. Reinforced weave patterns and surface coatings are essential.
Chemical Attack
SO2, HCl, and HF from kiln gases can degrade filter fibers. Acid-resistant materials like PPS or PTFE coating provide protection.
Temperature Spikes
Kiln upset conditions can cause temperature excursions above normal operating range. Thermal-resistant media prevents catastrophic bag failure.
Moisture Condensation
During startup/shutdown cycles, moisture condenses on filter bags causing dust cake hardening. Hydrophobic treatment prevents blinding.
Cement Industry Applications
ECOGRACE Advantages for Cement Plants
Custom Engineering
Filter bags tailored to your specific kiln type, fuel source, and emission requirements. We analyze your dust composition and gas chemistry before recommending materials.
Extended Service Life
Proprietary surface treatments and reinforced stitching deliver 24-36 month lifespan, reducing replacement frequency and total cost of ownership by up to 40%.
Global Compliance
Meet EPA, EU IED, and local emission standards. Our PTFE membrane options achieve outlet concentrations below 5 mg/Nm³ — well within the strictest global regulations.
Fast Delivery Worldwide
Standard sizes ship within 15 days. Custom dimensions within 20-25 days. Emergency orders available for critical dust collector replacement needs.
Frequently Asked Questions
What filter bag material is best for cement kiln applications?
For kiln tail baghouses operating above 200°C, fiber glass filter bags with PTFE membrane provide the best combination of heat resistance, chemical durability, and filtration efficiency. For clinker cooler applications, NOMEX filter bags offer superior abrasion resistance.
How long do cement plant filter bags last?
With proper material selection and operating conditions, ECOGRACE cement plant filter bags typically last 24-36 months. Factors affecting lifespan include temperature excursions, dust abrasiveness, cleaning pulse pressure, and chemical exposure from kiln gases.
Can you supply filter bags for existing baghouse collectors?
Yes. We manufacture replacement filter bags compatible with all major baghouse filter bag systems including pulse jet, reverse air, and shaker types. Provide your current bag dimensions and operating conditions for an exact match.
What is the minimum order quantity?
MOQ is 100 pieces for standard sizes. Volume pricing available for orders over 500 pieces. Free samples provided for quality evaluation before bulk ordering.
Do you provide on-site technical support for cement plants?
Yes. Our engineering team provides remote consultation for all projects and on-site support for large-scale cement plant installations. Services include dust analysis, material recommendation, installation supervision, and baghouse performance optimization.
Request a Technical Quote for Cement Plant Filter Bags
Contact ECOGRACE for customized dust collection solutions for your cement production line
